standard features:

PLC Controller (Panasonic) / Touch Panel Interface
Left to Right Process Flow, Front Fixed Rail

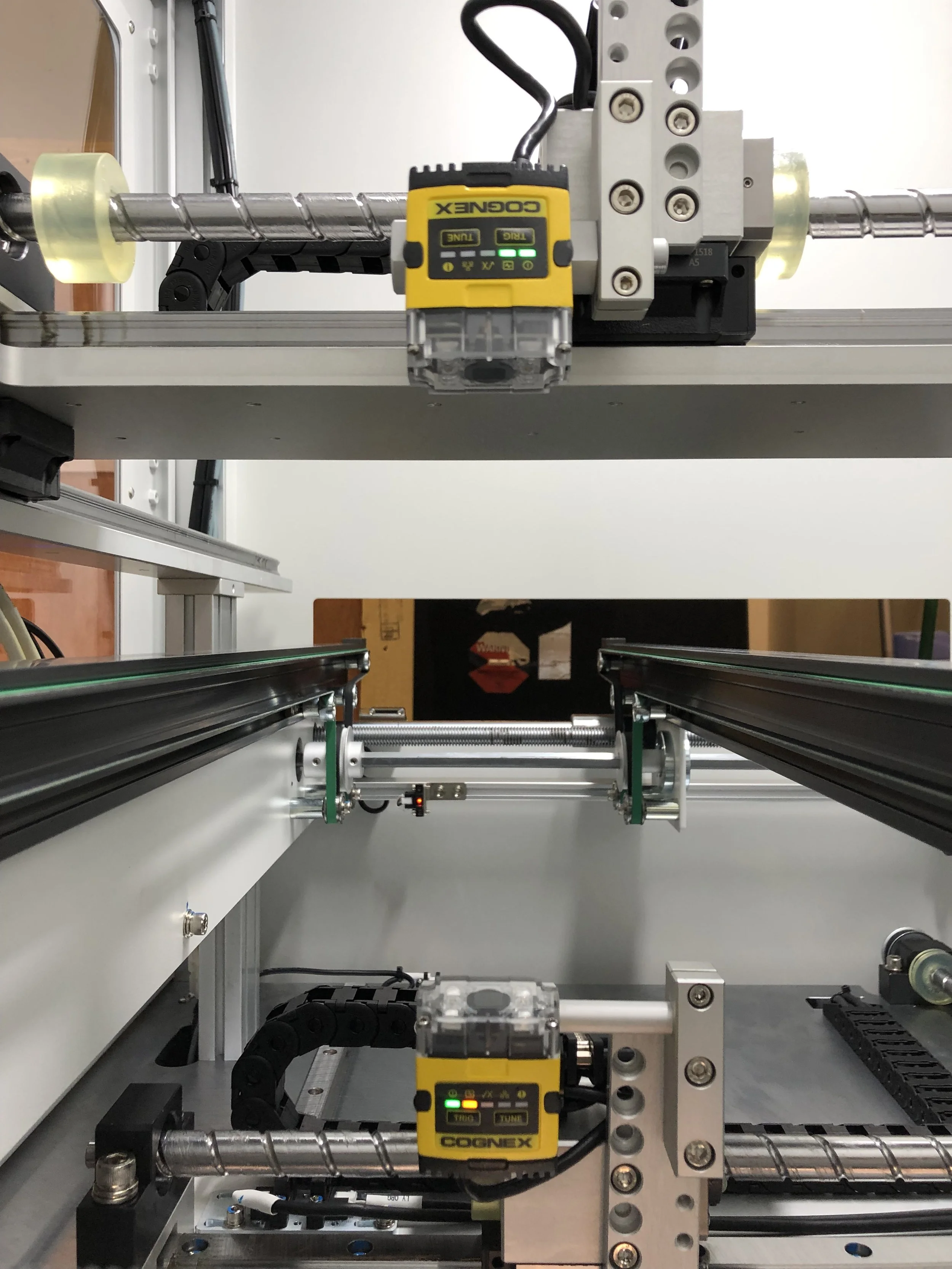

Cognex Code Readers (standard)

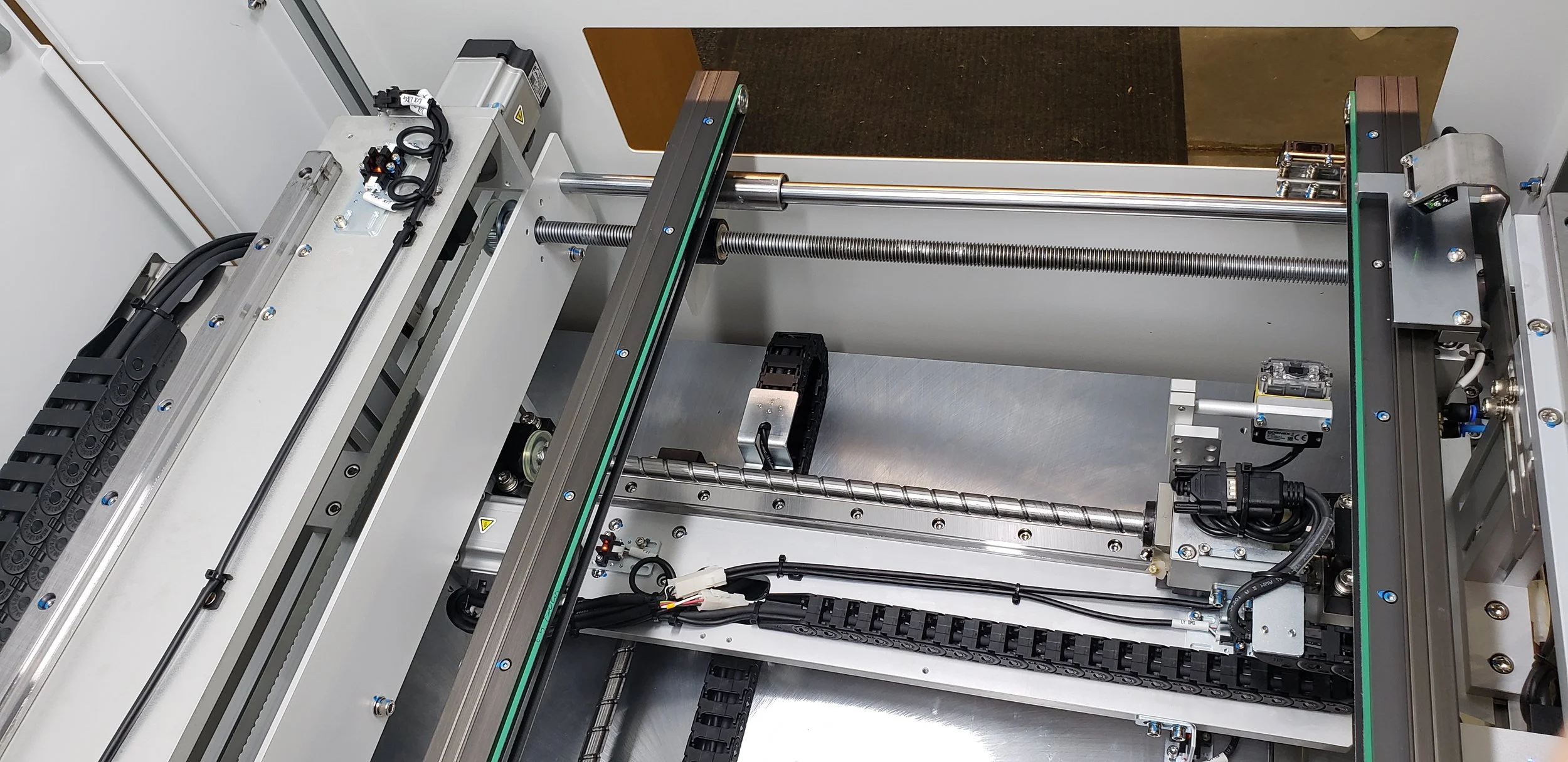

Precision movement of readers based upon programming. Top and Bottom sides.
Automatic Width Adjustment
E-Stop, On/Off, Status Light Tower
Roller wheels and rubber bottom leveling feet
Powder coated vanity panels EX8816S-SR-WH020KCC Off White
10 foot power cord (detachable)
SMEMA cables / Ethernet Cables
Pass Line Height (950 mm nominal +/- 30mm)
72 PSI Air (5 Bars)
110V Power Outlet / 15A standard circuit

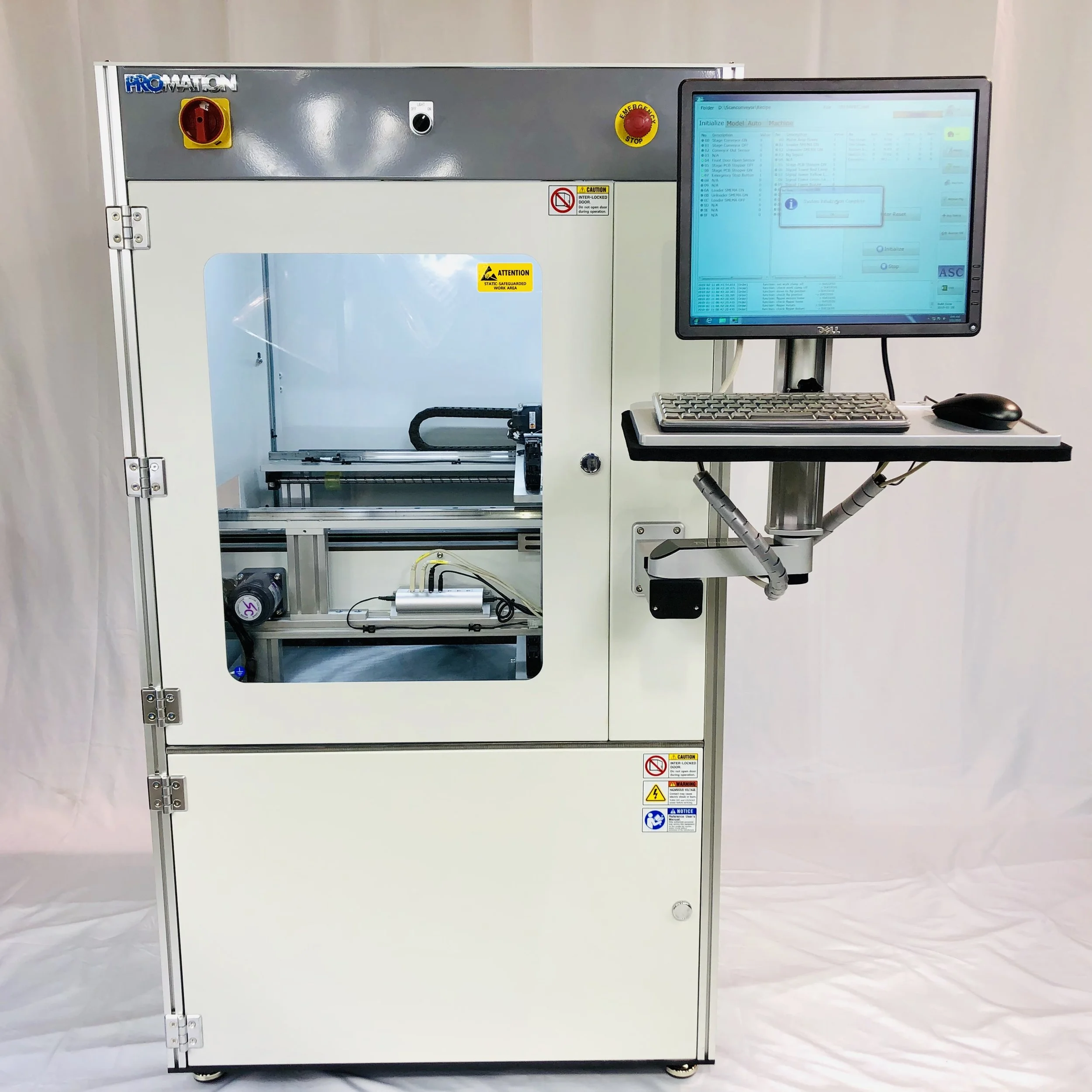

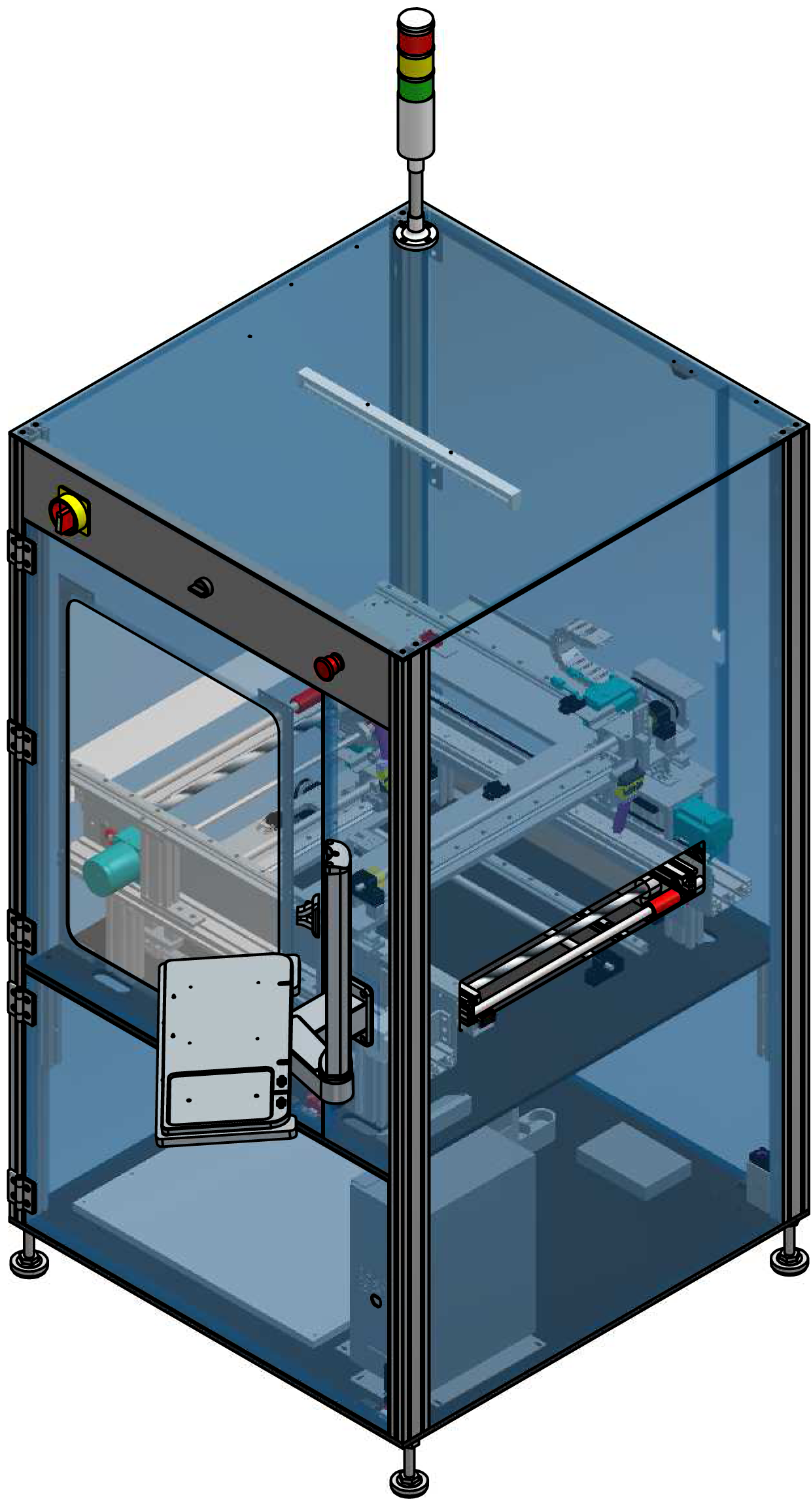

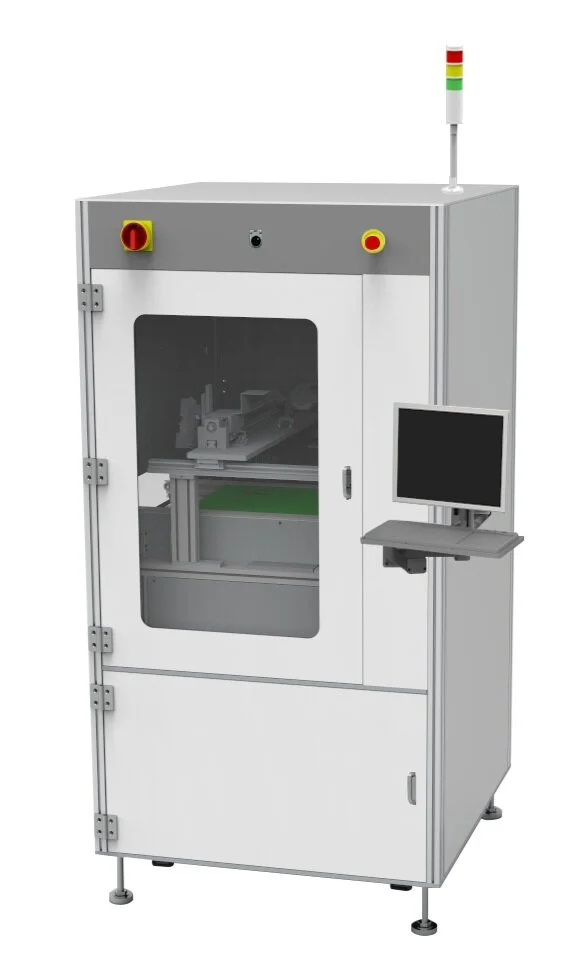

ASC-100TB

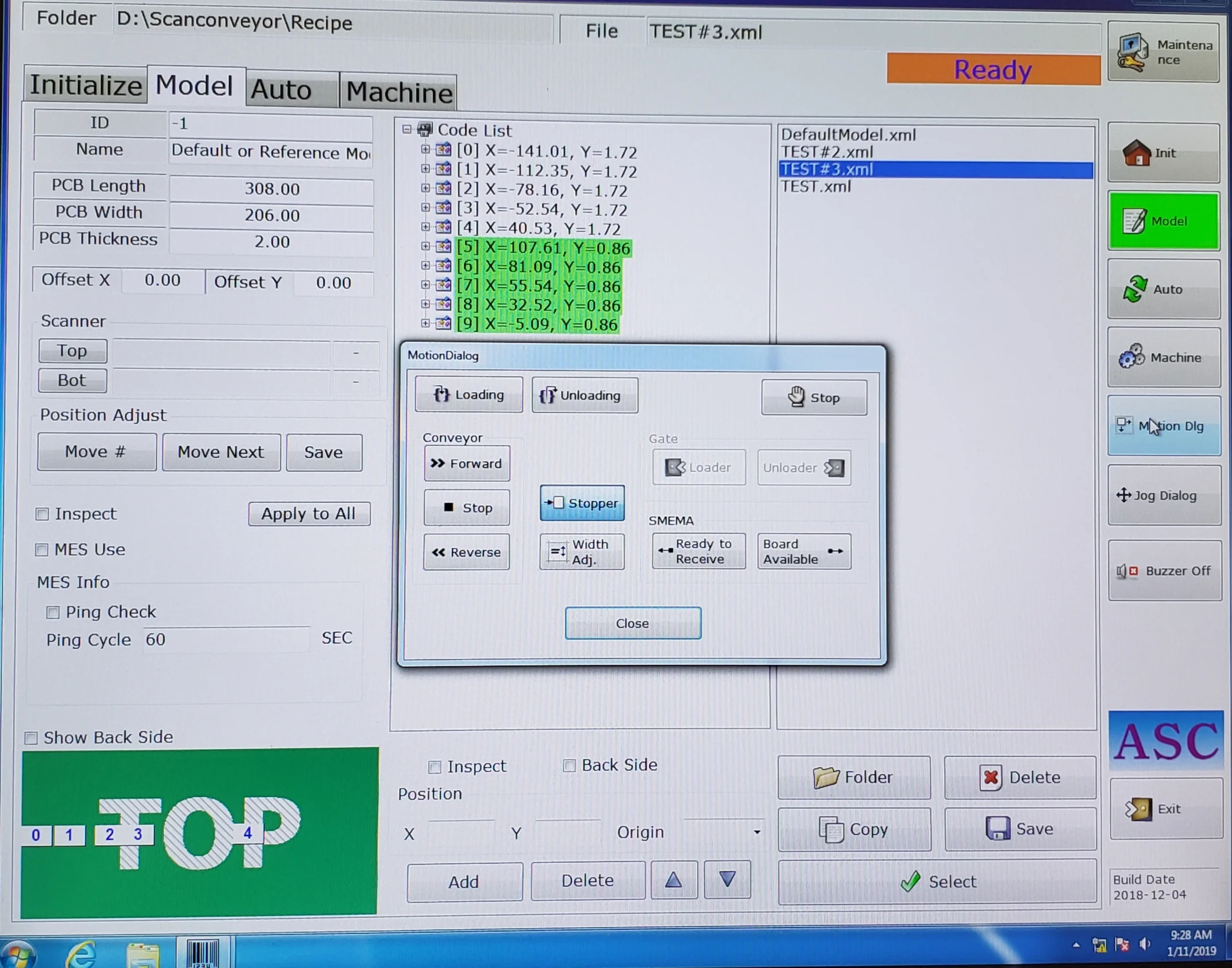

The ASC-100TB is a fully programmable Top and Bottom Side Bar Code Scanning conveyor system. Using our standard Micro-scan barcode readers, the top and bottom side gantries can quickly be programmed to move to various locations on the PCB to read and verify bar codes (labels or laser marks). Decrease Cycle Time by up to 20% or more! When combined with or added to a Laser Mark or Label Print and Place process users can expect a dramatic reduction in cycle time. This is due to the fact that the ASC-100TB can scan barcodes while the upstream Labeling machine is processing the next board. Our data indicates the average time to move and mark to be around 1.5 seconds, whereas, average move and scan time is about 1 second. When a single machine handles both, the time per location averages about 2.5 seconds. For far less than the cost of adding another Marking/Labeling system, you can increase front end productivity with ease!
