S100-T4
In-LINE Soldering Robot
The S100-T4 In-Line Soldering Machine features a robust Hot Iron system with a superior closed loop temperature sensor capable of delivering and maintaining a tip temperature with industry leading stability and accuracy. Complete with a 150W Power Supply, a Wire Perforating Solder Feeder, 4-Axis Motion, Automatic Width Conveyor Bed, Adjustable End Effector, and a Tip Cleaning Station this system is more than capable of handling most any Soldering Application.
S100-T4 In-Line Soldering MACHINE OfferS New Technology:
The S100-T4 has been redesigned to offer users the latest in soldering technology. The new upgraded unit is compatible with the following new technologies:
Bottom-Side Pallet Return System
Upgraded Solder Feed Station (for applications that require a higher degree of rotation)
New Elegant Exterior Color Scheme
New Quieter Operation

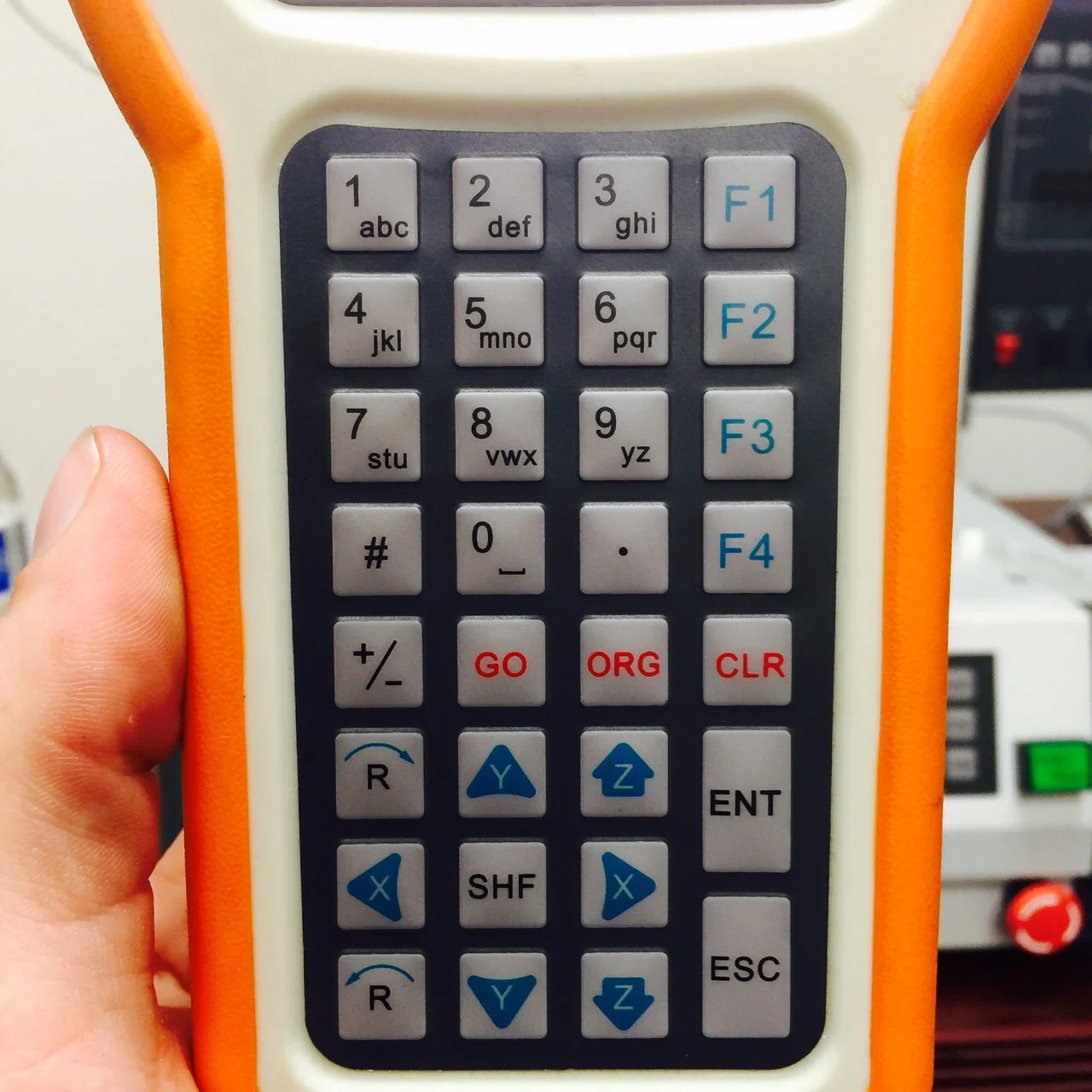

SYSTEM SPECIFICATIONS
VOLTAGE: 110V AC
POWER SUPPLY: 150W
TEMPERATURE RANGE: 50°C-500°C
AXIS: 4
COMMAND PER PROGRAM CAPACITY: ≤999, Max, 60000 points
ON BOARD FILE STORAGE: ≤256 Programs
MACHINE SIZE WxDxH: 914x760x1066mm
WORKTABLE MAX LOAD: 11lbs
HEAD MAX LOAD: 4lbs
MOVEMENT RANGE:
X-AXIS 400mm
Y-AXIS 500mm
Z-AXIS 100mm
R-AXIS 300°
SPEED RANGE:
X-AXIS 0.1-600mm/sec
Y-AXIS 0.1-600mm/sec
Z-AXIS 0.1-200mm/sec
R-AXIS 0.1-600°
REPEAT ACCURACY:
X-AXIS ±0.02mm
Y-AXIS ±0.02mm
Z-AXIS ±0.02mm
R-AXIS ±0.02°
STEPPER RESOLUTION:
X-AXIS 0.01mm
Y-AXIS 0.01mm
Z-AXIS 0.01mm
R-AXIS 0.01°
ENVIRONMENTAL CONDITIONS:
TEMPERATURE 0-40°C
HUMIDITY 20-90%
