MOBILE ROBOT
magazine line Unloading Solutions

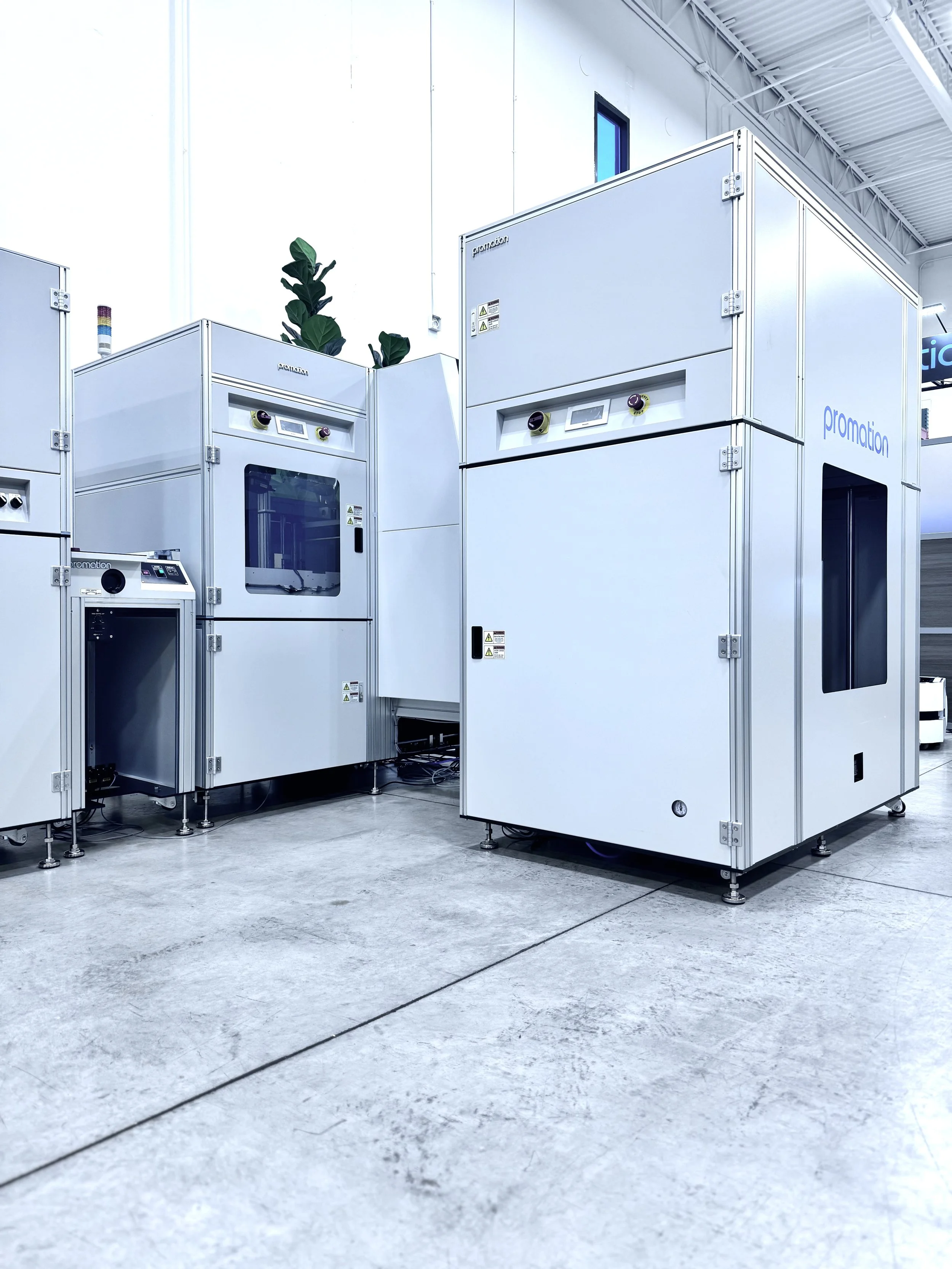

The Mobile Robot Series Magazine handler is a “Line Unloading” solution that is used to autonomously populate the line with PCBs. This unit is typically placed at the end of the production line and provides an intelligent routing of products from end-of-line to: secondary side processing at the front of the production line, offline batch process work, offline testing stations, and intelligent transport throughout the factory. This unit features fully automatic magazine loading and adjustable pitch (10mm up to 50mm). Roller wheels and leveling feet allow for quick integration into the line. Front Load and Side magazine buffer solutions available.
SIGNATURE Features:
PLC Controller (Panasonic)
Left to Right Process Flow, Front Fixed Rail
Adjustable pusher position (manual)
Adjustable flow control for pusher / PLC tracking
Single Front Load/Unload magazine system
E-Stop, On/Off
Roller wheels and leveling feet
Powder coated panels (PROMATION Off White)
10 foot power cord (detachable)
One SMEMA cable
Pass Line Height (950mm nominal +/- 30mm)
Designed for 50 slot magazines (Nikko/Cab)
110V Power Outlet / 15A standard circuit
Full safety covers (CE Type)
Touch Panel with Password Protection
Adjustable pusher timer
Selectable Number of PCBs to be run from each magazine
Selectable Pitch (10 ~ 50mm) in 10mm increments
Full magazine notification
Elevator System w/ Magazine Orientation Station
Available Options:
Electric pusher type
900mm nominal +/- 30mm
Right to Left process flow
220V Power Outlet
Magazine sizes S, L and UX are options
