ET7383K Automatic Screw Driving Robot
The PROMATION ET7383K Automatic Screw Driving Robot features a robust Cartesian 3-Axis Gantry with industry leading stability and accuracy. Complete with Input / Output Terminals, the system is integrated with a high-precision automatic screw driving system - designed to deliver constant torque through-out the assembly process.
Combined with the Automatic Screw Feeding System (Air Output Type) this system can continuously feed screws, maintain an accurate screw count, and prevent screws from being lost, mishandled, or improperly installed.
Torque Monitoring Solution:
Our Torque Monitoring Solution allows for users to create individual torque specifications/ parameters for each location within the product assembly and date stamps each torque specification for data back-up and retrieval.
A Variety of Screwdrivers are available and are specific to the screw type being used. Contact our expert team today to obtain a custom tailored solution that best meets your application requirements.

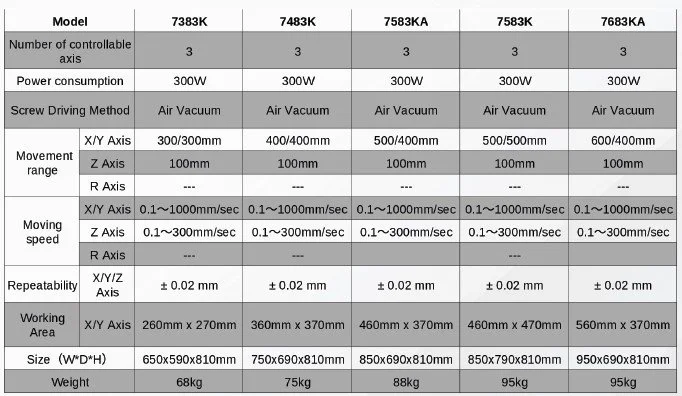

system specifications:
VOLTAGE: 100~240V AC
POWER: 300W
AXIS: 3
MOVING RANGE:
X-AXIS 300mm
Y-AXIS 300mm
Z-AXIS 100mm
MOVING SPEED:
X-AXIS 0.1~100mm/sec
Y-AXIS 0.1~100mm/sec
Z-AXIS 0.1~300~mm/sec
REPEATABILITY:
X-AXIS ±0.02mm
Y-AXIS ±0.02mm
Z-AXIS ±0.02mm
DIMENSIONS: 650mm x 590mm x 810mm
WEIGHT: 192lbs
