DUAL TIP SOLDERING ROBOT
9433d
Call for pricing

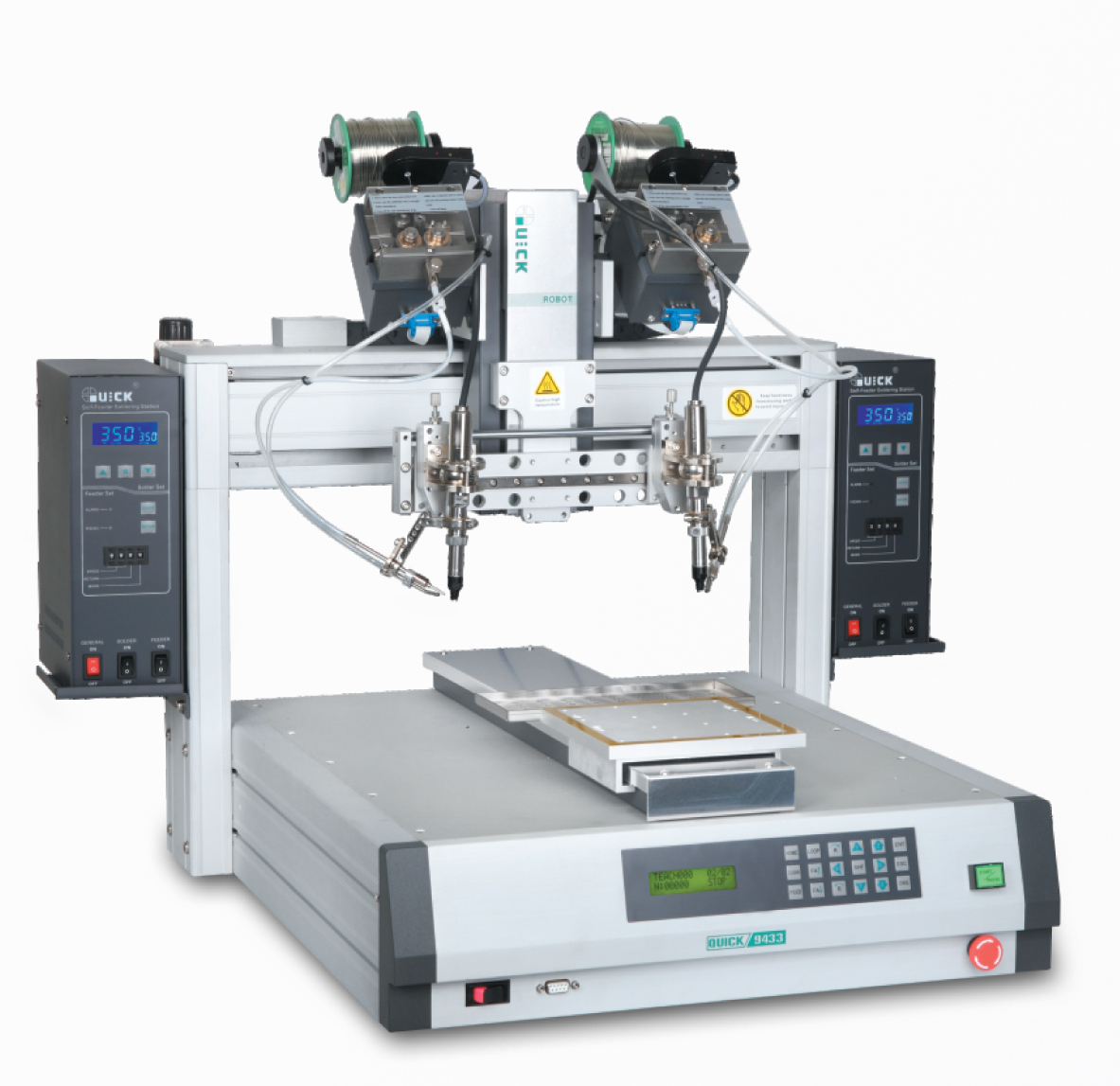

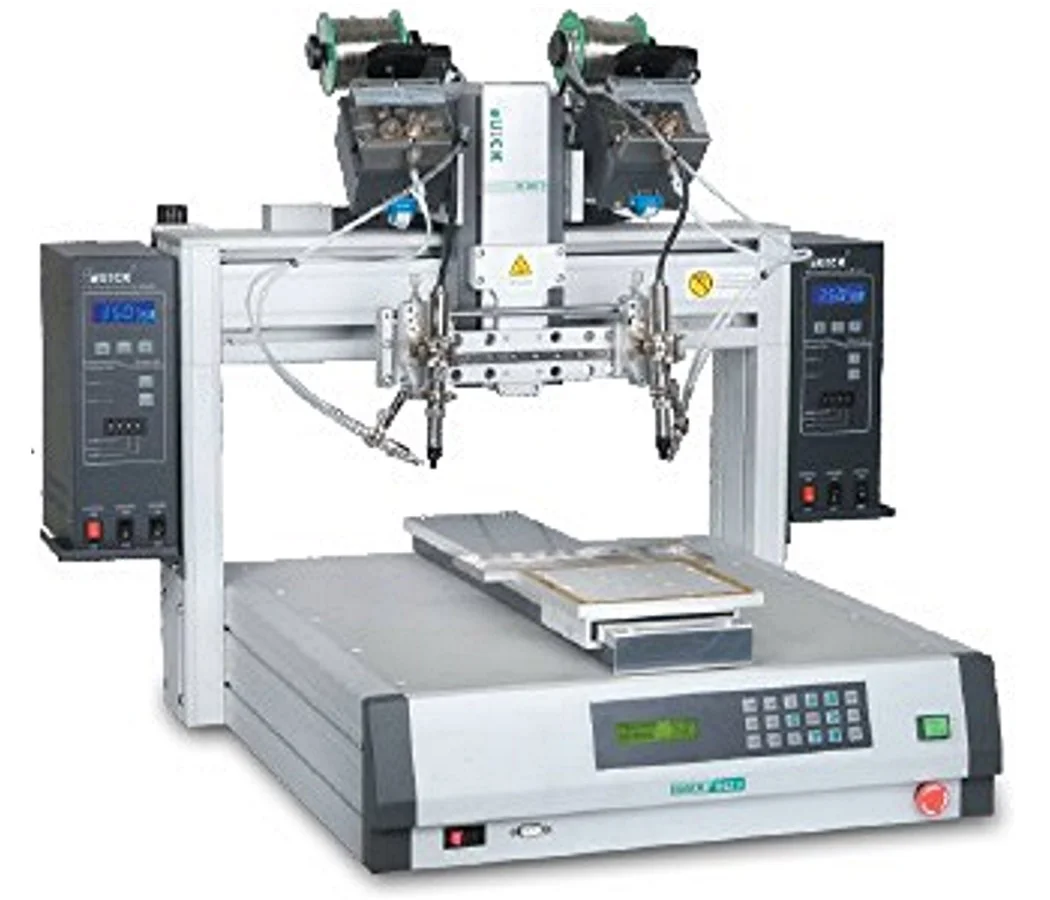

The QUICK 9433D Soldering Robot features a robust Hot Iron system with a superior closed loop temperature sensor capable of delivering and maintaining a tip temperature with industry leading stability and accuracy. A Dual-Tip system will grant increased production efficiency by doubling the volume of product being soldered in a single cycle. This system is ideal for Multi-up Panels with properly sequenced solder joints.
System Specifications
VOLTAGE: 100~240V AC
HEATING POWER: 150W
TEMPERATURE RANGE: 50°C~500°C (as per working modes)
AXIS: 3
DIMENSIONS WxDxH: 780x730x630mm
WEIGHT: 99lbs
SOLDER WIRE DIAMETER: 0.3, 0.5, 0.6, 0.8, 1.0, 1.2, 1.6 (mm)
ON BOARD FILE STORAGE: 255 Programs Max
COMMAND PER PROGRAM STORAGE CAPACITY: 60000 Commands Max
MOVING RANGE:
X-AXIS: 400mm
Y-AXIS: 400mm
Z-AXIS: 100mm
MOVING SPEED:
X-AXIS: 0.1~600mm/sec
Y-AXIS: 0.1~600mm/sec
Z-AXIS: 0.1~300mm/sec
REPEAT ACCURACY:
X-AXIS: ±0.02mm
Y-AXIS: ±0.02mm
Z-AXIS: ±0.02mm
ENVIRONMENT:
TEMPERATURE RANGE 0~40°C
HUMIDITY 20%~90%
