9434 Soldering Robot
Call for pricing

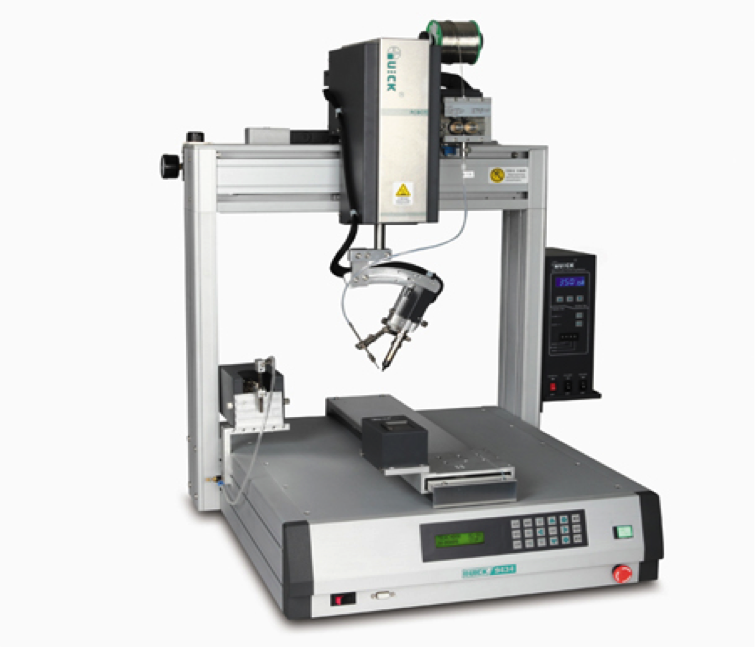

The QUICK 9434 Soldering Robot features a robust Hot Iron system with a superior closed loop temperature sensor. The Hot Iron is capable of delivering and maintaining a tip temperature with industry leading stability and accuracy. Two fine-toothed gears work to pull Solder from the Solder Spool while also perforating the surface of the Solder Wire to allow for better out gassing of the Flux Core. Better out gassing results in less solder and flux splash.

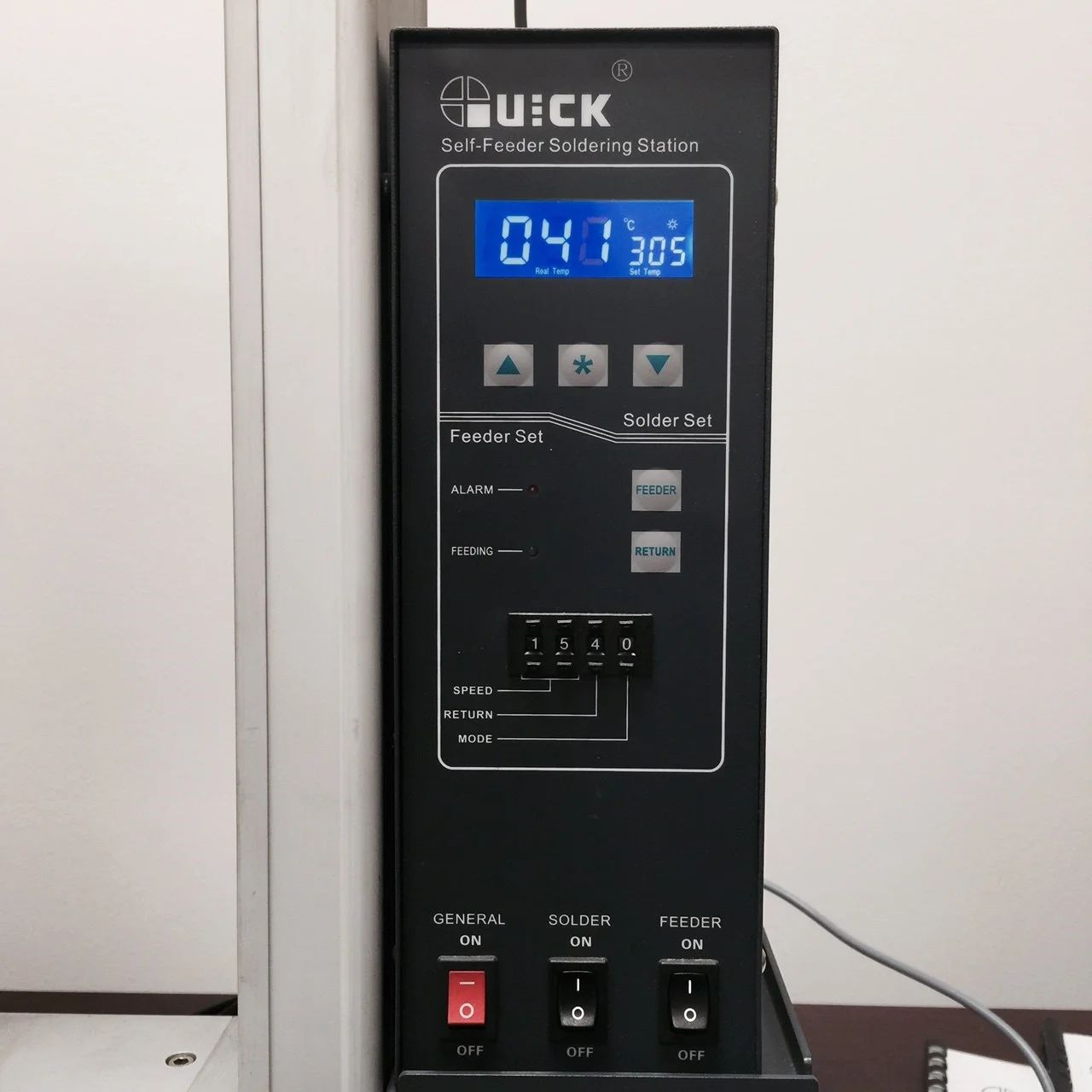

All systems come standard with a 150W Power Supply capable of maintaining a temperature of up to 500°C, automatic solder feeder, tip cleaning station, and positive tip location. Nitrogen blanket sleeves, vision guidance, Color CCD "Witness Cameras" and light screen safety enclosures are all available options.
System specifications:
VOLTAGE: 100-240V AC
HEATING POWER: 150W
TEMPERATURE: 50~500°C (as per working order)
AXIS: 4
WORKTABLE MAX LOAD: 17lbs
HEAD MAX LOAD: 4lbs
SIZE WxDxH: 570x570x790mm
WEIGHT: 110lbs
SOLDER WIRE DIAMETER: 0.3, 0.5, 0.6, 0.8, 1.0, 1.2mm
ON BOARD FILE STORAGE: 255 Programs Max
COMMAND PER PROGRAM STORAGE CAPACITY: 60000 Commands Max
MOVEMENT RANGE:
X 400mm
Y 400mm
Z 100mm
R 300°
SPEED RANGE:
X 0.1-600mm/sec
Y 0.1-600mm/sec
Z 0.1-200mm/sec
R 0.1-600°/sec
REPEAT ACCURACY:
X ±0.02mm
Y ±0.02mm
Z ±0.02mm
R ±0.02°
STEPPER RESOLUTION:
X 0.01mm
Y 0.01mm
Z 0.01mm
R 0.01°
ENVIRONMENTAL CONDITIONS:
TEMPERATURE RANGE 0-40°C
HUMIDITY 20%-90%(No Condensing)
