automatic label
placement System

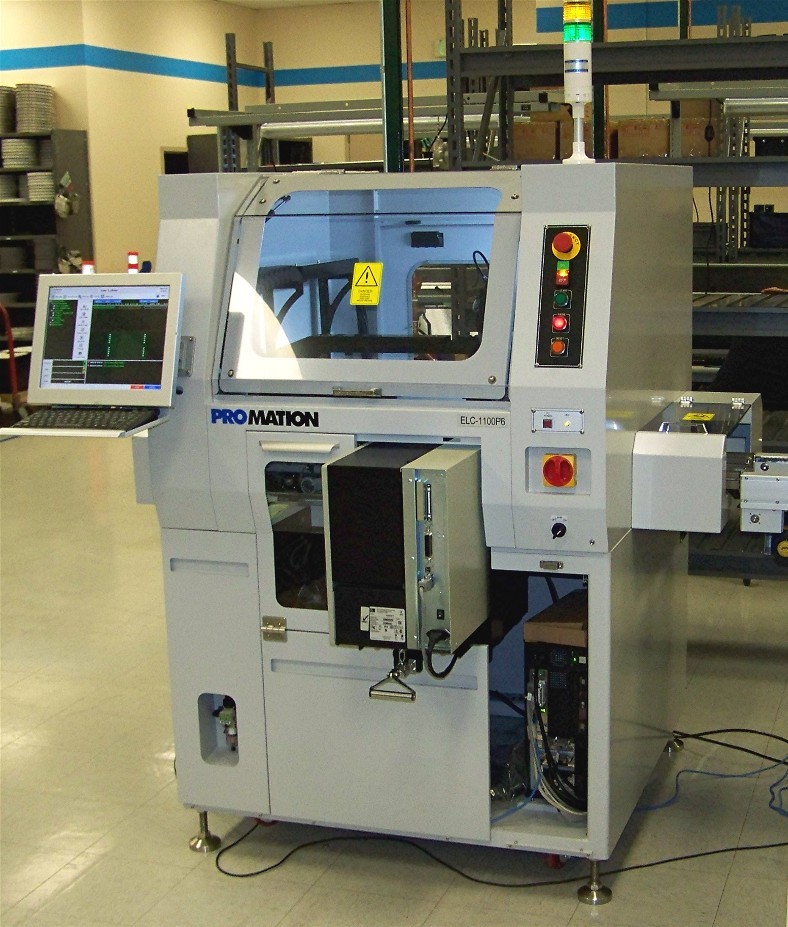

Our LABELPRO System is used to print and place labels onto PCBs. This station is integrated with a high resolution 600 dpi zebra label printer that is compatible with most common labels.  1d / 2d code verifiers are also available with “re-print” feature and internal flip options.

• Programmable Logic Controller.

• 3 color light tower with audible alarm.

• On-board windows PC.

• LCD with advanced GUI bar code generator software.

• Left to right & right to left process flow available; front fixed rail.

• Multi-stage conveyor - belt speed: 180mm/sec.

• Processing speed: average. 2 ~ 4.5 sec (depends upon verification feature).

• Overhead gantry for x-axis, y-axis: x-axis 500mm, y-axis 500mm

• Servo stroke for Z-axis: Z-axis 100mm programmable.

• SMEMA spec. 1.2 interface

• Label size 6mm x 6mm up to 50mm x 50mm

• Labeling head rotation (o): -90°/+180°

• Includes 600dpi high resolution zebra label printer.

• Label carrier has label detection and vacuum hold down.

• Repeatability: ±0.25mm

• Operator controls (E-Stop, reset, master touch screen).
