FEATURES INCLUDE:
Stable and adjustable ion balance.
Quickly neutralizes static charges.
Adjustable fan speed capable of generating a large-area ion stream.
Long lifetime magnetic leakage transformer designed to protect the unit from short circuiting.
Built-in emitter cleaner, easy cleaning.
Safe and low power consumption heater.
Two fan solution (630mm Long)
system Specifications:
suspension type
442-2

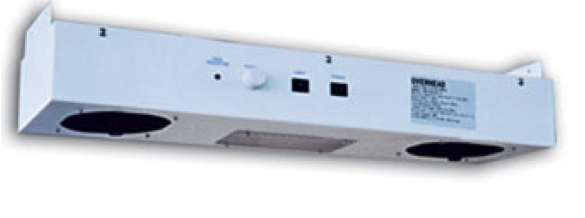

The QUICK 442-2 is a suspension type anti-static fan that blows ionized air over the surface of electro-sensitive products. Hanging above a work cell this fan is able to cover a large surface thoroughly. This ionized air neutralizes surface electrical charge to help comply with ESD requirements. Variable speed allows operators to control the volume of ionized air flow across the work area.
POWER CONSUMPTION: 50W
OUTPUT VOLTAGE: AC 5.6KV
ION BALANCE: Adjusted ≤ ±15V before delivery(450mm from the panel)
AIR VOLUME: ≤1.2 -2.4m3 /min
OZONE PRODUCTION: ≤ 0.03ppm (150mm from the center of air outlet)
OPERATING TEMPERATURE: 0-50℃
EFFECTIVE RANGE: 600~900mm
FILTER: Optional
DIMENSIONS: 630(L)*170(W)*90(H)mm
WEIGHT: 154LBS
