FEATURES INCLUDE:



  • Preset Process Parameter Controls (3 Modes) for easy process changeover.

  • Temperature Alarm Function

  • Real-Time Temperature Monitoring with rapid thermal recovery technology.

  • Easy Solder Tip Replacement

  • ESD Safe, with ESD Monitoring Functions Available.

QUICK
TS2300

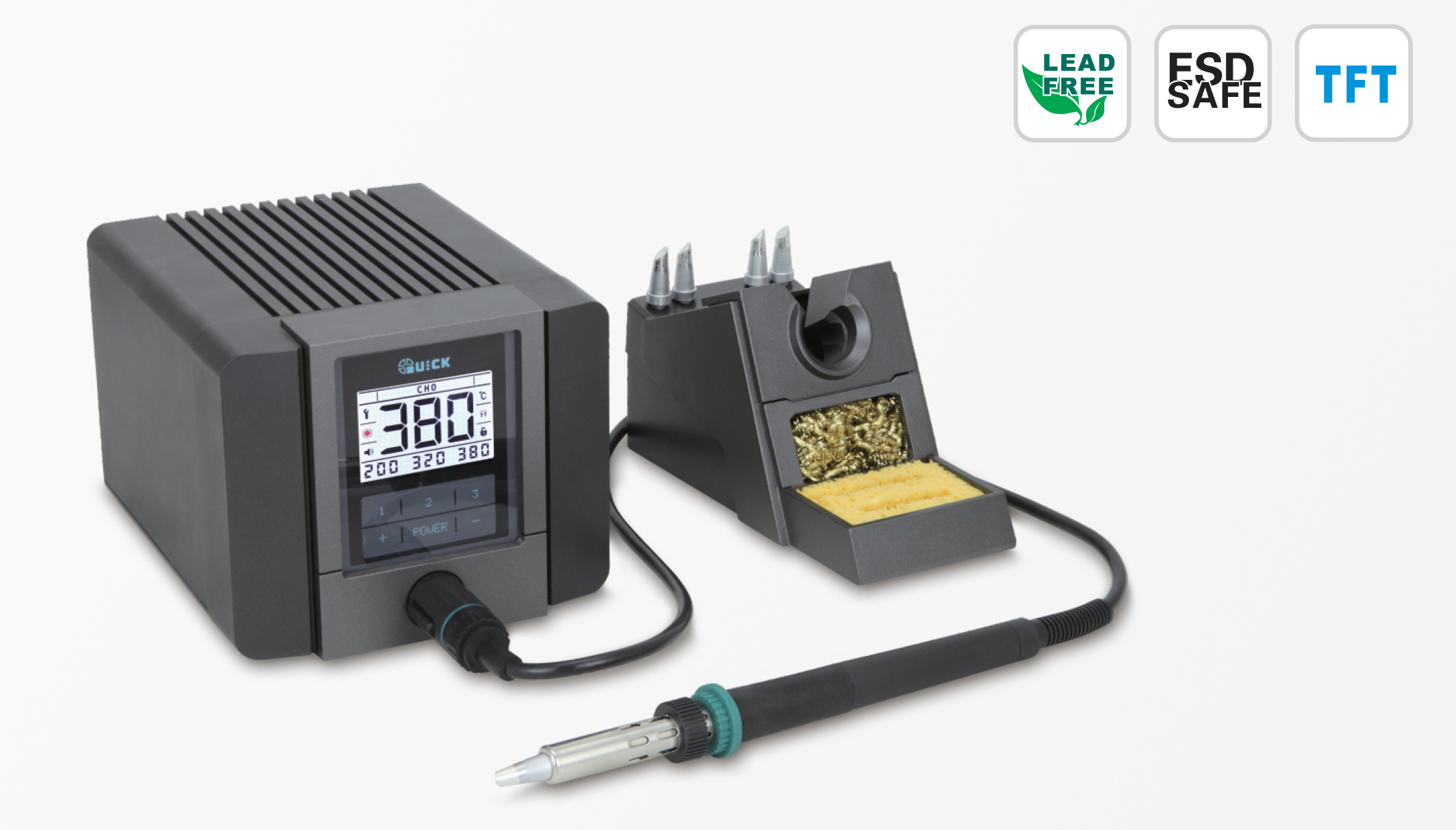

The QUICK TS2300 is an intelligent lead-free soldering station. Utilizing a 150 watt power supply, this system is great for meeting the everyday challenges of most soldering applications and offers consistent soldering quality.

The QUICK TS2300 is compatible with our online monitoring software package; allowing users to connect up to 100 units and monitor from an offline PC / Work Station.

The station features all new ergonomic design and brilliant LCD Display.



system Specifications:



MAX POWER CONSUMPTION:                                                         150W

VOLTAGE:                                                                                              110V/220V

TEMPERATURE RANGE:                                                                    200℃-480℃

TEMPERATURE STABILITY:                                                               ±2℃

DISPLAY:                                                                                               Brilliant Color TFT LCD

TOTAL DIMENSIONS:                                                                         137mm * 165mm *114mm

TS Series Online Monitoring Software Available Upon Request!
