FEATURES INCLUDE:
Compact, light & portable design with adjustable angle.
PC connection by RS485 comunication allows for factory network control of all linked units.
Quickly neutralizes static charges.
Adjustable fan speed capable of generating a large-area ion stream.
Long lifetime magnetic leakage transformer designed to protect the unit from short circuiting
Built-in emitter cleaner, easy cleaning.
Safe and low power consumption heater.

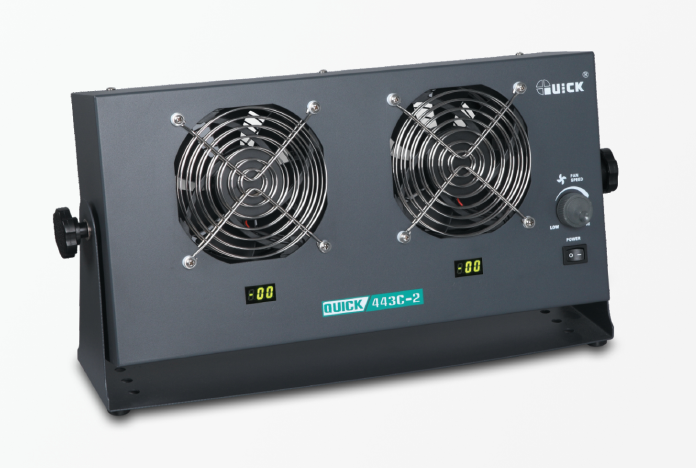

QUICK Intelligent small stand-up model
443C-2
The QUICK 443C-2 is an intelligent desk top anti-static fan that blows ionized air over the surface of electro-static sensitive products. This ionized air neutralizes surface electrical charge to help comply with ESD requirements. Variable speed allows operators to control the volume of ionized air flow across the work area.
The QUICK 443C-2 is compatible with our online monitoring software package; allowing users to connect up to 100 units and monitor from an offline PC / Work Station.
system Specifications:
POWER CONSUMPTION: 35 Watt
OUTPUT VOLTAGE: ±5000VDC
ION BALANCE: ≤±5V
AIR VOLUME: ≤ 2.4m3 /min
EFFECTIVE RANGE: 600~1500mm
OZONE PRODUCTION: ≤0.03ppm (150mm from center of air outlet)
NOISE: 45dB
AMBIENT TEMPERATURE: 0-40℃
DIMENSIONS: 430(L)*100(W)*190(H)mm
WEIGHT: 3.2 Kg
